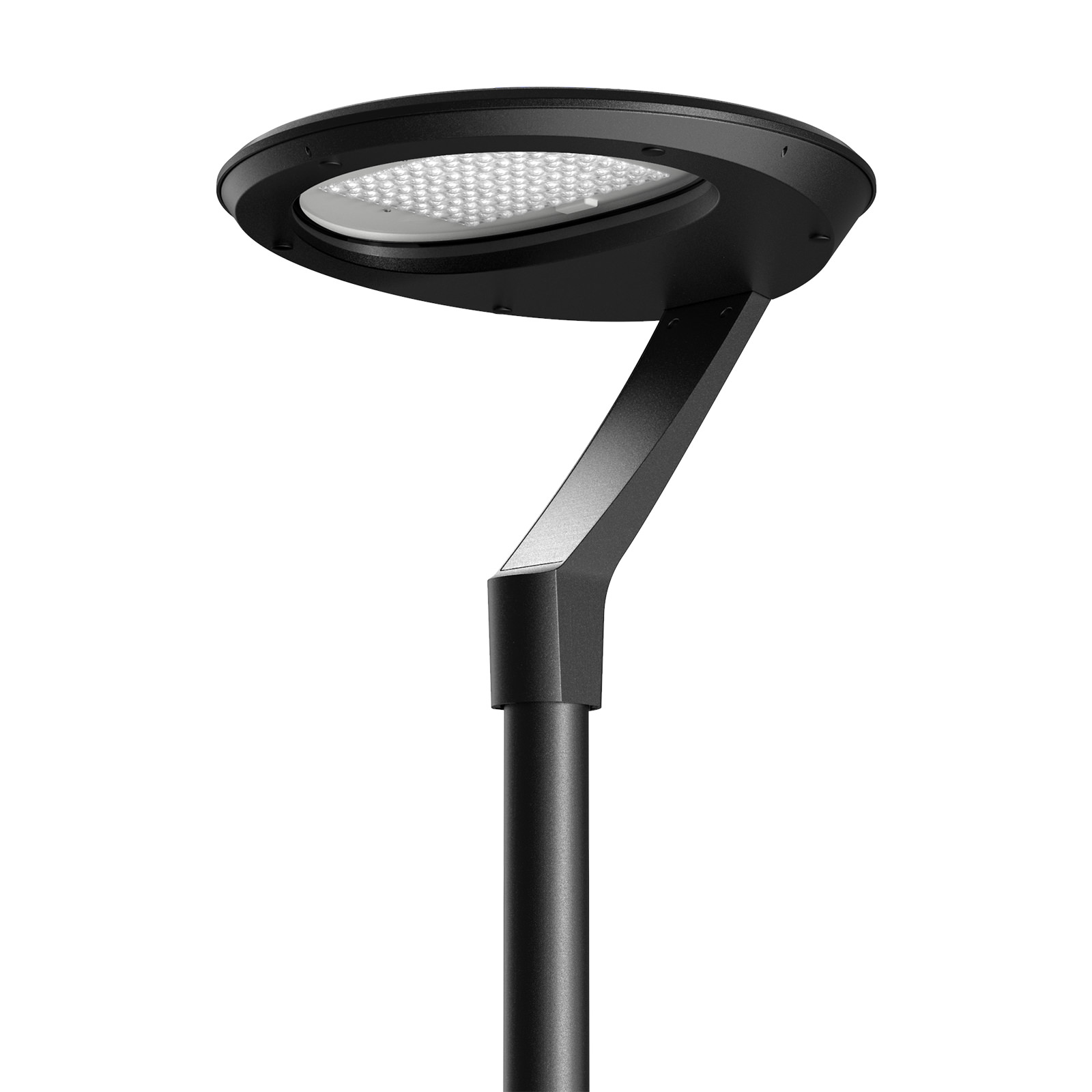

ST38 LED Post Top Light

ST38 LED Post Top Light

ST38 LED Post top brings architectural style to area and site and pedestrian scale applications, the design brings a desired organic look into the urban environment. professional optic provide an excellent effect, managing glare while providing high levels of visibility.

  • LED Post Top Light / Garden Light
  • Contemporary, architectural design, elegant appearance.
  • Smooth housing without any screws exposed.
  • Professional optic provide an excellent effect, managing glare while provides high level of visibility.
  • IK08, IP66 Rated
  • φ60mm post top mount available
  • Area, site and pedestrian scale applications
* Lumen output and efficacy are only for reference. Not all product variations listed on this page are DLC Standard/Premium qualified. Visit www.designlights.org/search to confirm qualification.
Electrical Information
Model No. ST38-040 ST38-060 ST38-075 ST38-100
Power Consumption(±5%) 40W 60W 75W 100W
Input Voltage 100-277 VAC , 50 / 60 Hz
Power Factor >0.92
Surge Protection 6kV line-line, 10kV line-earth
Driver Type Constant Current (CC)
Control Dimmable and Non-dimmable, Microwave Sensor, PIR Sensor
zhaga Wireless Control, Photocell Control

Optic Information
Luminous Flux (±10%) 5200LM 7800LM 9750LM 13000LM
Efficacy(4000K Ra70) 130lm/W
Correlated Color Temperature 4000K (5000K optional)
Color Rendering Index Ra70 (Ra80 optional)
Beam Angle R01201、R01203、R01204、R01205、R01207、R01208、R01209
UGR level NA

Dimentions and Mount
Product Dimension φ476*410mm(18.74''*16.14'')
Luminaire Net Weight 7.1±0.3kg(15.62±0.66lbs) 7.4±0.3kg(16.28±0.66lbs) 7.5±0.3kg(16.5±0.66lbs)
Export Carton Size 650*570*135mm(25.59''*22.44''*5.31'')
Gross Weight 8.9±0.3kg  (19.58±0.66lbs) 9.2±0.3kg(20.24±0.66lbs) 9.3±0.3kg(20.46±0.66lbs)
Mounting Option Post Top
Material Aluminum Alloy
Tempered Glass and Polycarbonate Optical Lens
Finish Powder Coating
Fixture Color Powder Coating
EPA 1.63ft²
IK Rating IK08
IP Rating IP66

Lifespan and Warranty
Operating Temperature -30°C to + 50°C(-22°F to 122°F)
Life Time of LED @Ta=25°C 54000hrs-L90
100000hrs-L80
100000hrs-L70
Warranty 5 Years
