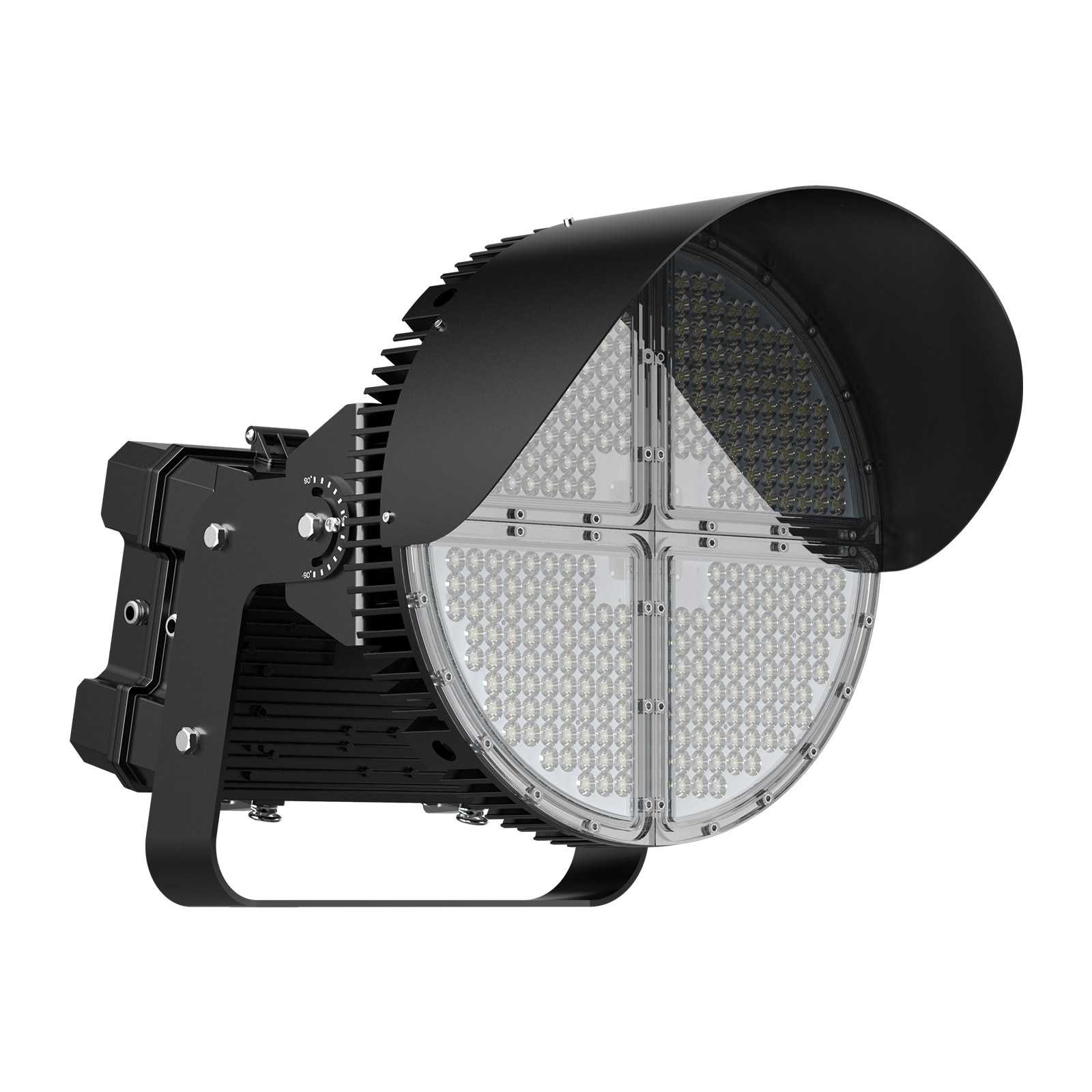

FL27 HeLios is a superior high output, high efficiency LED flood light, which is the ideal solution for professional stadium lighting and sports fields. Cold forged heat sink with sun flower fin design make it’s better heat dissipation. Narrow beam angle 11° specially design for higher installations above 98ft(29m), and medium beam angle 60° is designed for normal installation height.
| Electrical Information | ||||
|---|---|---|---|---|
| Model No. | FL27-800 | FL27-1000 | ||
| Power Consumption(±5%) | 800W | 1000W | ||
| Input Voltage | 100-277VAC , 50 / 60 Hz; 277-480VAC , 50 / 60 Hz | |||
| Power Factor | >0.92 | |||
| Surge Protection | 10kV line-line, 20kV line-earth | |||
| Driver Type | Constant Current (CC) | |||
| Control | Dimmable、DMX | |||
| Zigbee Wireless Control | ||||
| Optic Information | ||||
| Luminous Flux (±10%) | 120000lm | 128000lm | 150000lm | 160000lm |
| Efficacy(5000K Ra70) | 150lm/W | 160lm/W | 150lm/W | 160lm/W |
| Correlated Color Temperature | 5000K (4000K,5700K optional) | |||
| Color Rendering Index | Ra70 (Ra80 optional) | |||
| Beam Angle | F07501，F07502，F11001， F11002 | |||
| UGR level | NA | |||
| Dimentions and Mount | ||||
| Product Dimension | 510×526×483mm (20.08" x 20.71"x 19.02") |
535×561×488mm (21.06" x 22.09"x 19.21") |
||
| Luminaire Net Weight | 31.2±0.3kg(68.64±0.66Lbs) | 33.2±0.3kg (73.04±0.66Lbs) | ||
| Export Carton Size | 600x600x610mm (23.62"×23.62"×24.01") |
|||
| Gross Weight | 38±0.3kg (83.6±0.66Lbs) | 40±0.3kg (88±0.66Lbs) | ||
| Mounting Option | Bracket Mounting | |||
| NA | ||||
| Material | Aluminum Alloy | |||
| Polycarbonate Optical Lens | ||||
| Finish | Powder Coating | |||
| Fixture Color | Black body | |||
| EPA | 1.72ft2 | 2.26ft2 | ||
| IK Rating | IK10 | |||
| IP Rating | IP66 | |||
| Lifespan and Warranty | ||||
| Operating Temperature | -30°C to + 40°C(-22°F to 104°F) | |||
| Life Time of LED @Ta=25°C | 53000hrs-L90 | |||
| 111000hrs-L80 | ||||
| 178000hrs-L70 | ||||
| Warranty | 5 Years | |||
