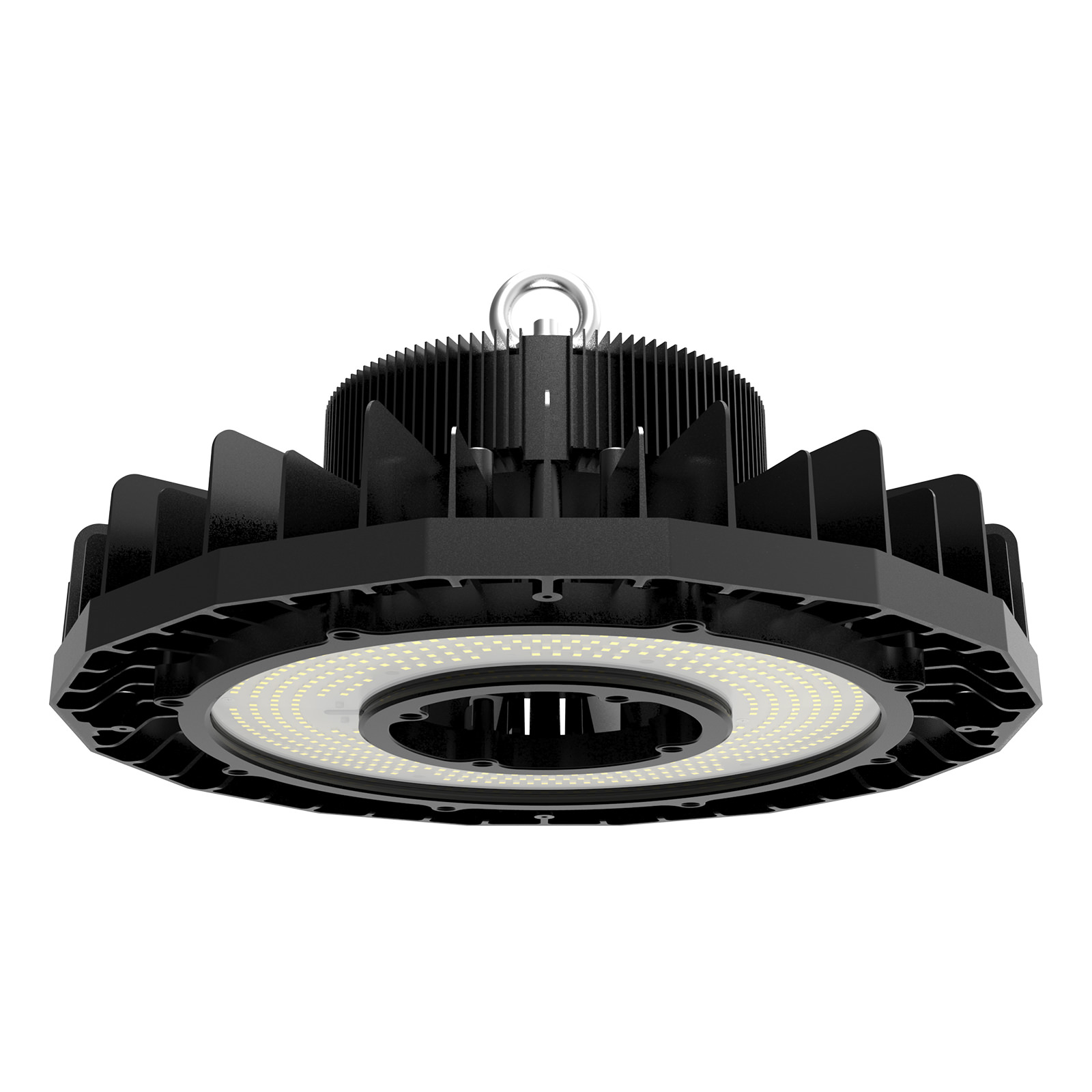

HB31 65℃ High Temperature LED High Bay

HB31 65℃ High Temperature LED High Bay

HB31 highbay light special designed for high working temperature industrial ambient, even for up to 65°C. Advanced thermal management system allows superior heat dissipation ensuring long life with minimal lumen depreciation. 5 years warranty is offered for such harsh environment.

  • High efficiency up to 165lm/w
  • 200W equiv.to 400W Metal Halide lamps
  • IP65 rated
  • Working temperature up to 65°C
* Lumen output and efficacy are only for reference. Not all product variations listed on this page are DLC Standard/Premium qualified. Visit www.designlights.org/search to confirm qualification.
Electrical Information
Model No. HB31-200
Power Consumption(±5%) 200W
Input Voltage 100-277 VAC /277-480VAC, 50 / 60 Hz
Power Factor ≥0.92
Surge Protection 4kV line-line,6kV line-earth
Driver Type Constant Current (CC)
Control Dimmable

Optic Information
Luminous Flux (±10%) 33000lm
Efficacy(@5000K Ra70) 165 LM/W
Correlated Color Temperature 5000K ,4000K
Color Rendering Index Ra70
Beam Angle H00A12
UGR level NA

Dimentions and Mount
Product Dimension φ400 x215mm (φ15.75" x8.46")
Luminaire Net Weight 7.37±0.3kg(16.25±0.66Lbs)
Export Carton Size 455x455x268mm(17.91"x17.91"x10.55")
Gross Weight 8.89±0.3kg(19.60±0.66Lbs)
Mounting Option Loop Hanging/Ceiling Mounting
Material Aluminum Alloy
Glass cover
Finish Powder Coating
Fixture Color black
EPA NA
IK Rating IK07
IP Rating IP65

Lifespan and Warranty
Operating Temperature -30°C to + 65°C (-22°F to 149°F)
Life Time of LED @Ta=25°C 70000hrs-L90
152000hrs-L80
244000hrs-L70
Warranty 5 Years
